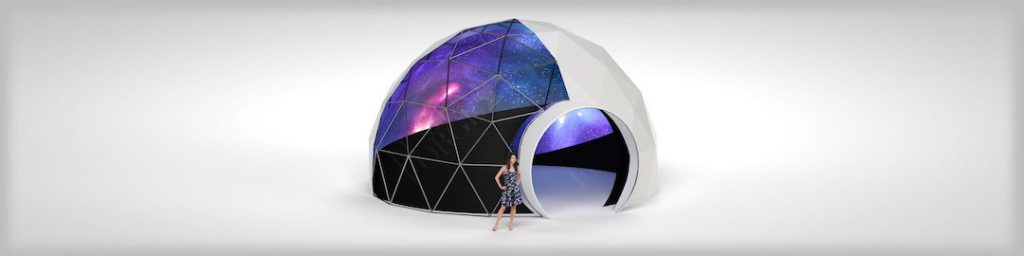

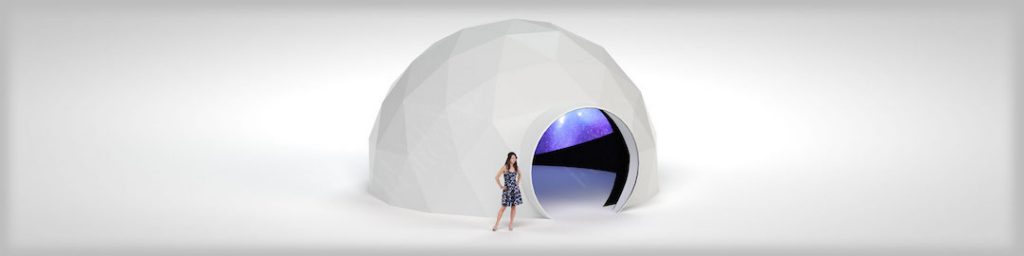

Geodesic Immersive Projection Domes are perfect for events that require a dome size between 10ft and 90ft (for larger sizes please see inflatable domes). The engineered frame structure is made from steel struts that are bolted together in such a way to create the dome shape. A waterproof vinyl cover is then added over the frame to create a weatherproof environment inside. A smooth projection surface is created by using a negative air pressure system that sucks the interior liner to the inside of the cover. All the geodesic immersive projection domes can be built within one to two days depending on the size.
Find your perfect size below.
Geodesic Projection Dome Specs
Size & Weight
Floor Area: 78.5 sq.ft. (7 sq.meters)
Ceiling Center Height: 7 ft. (2.1 meters)
Approx. Dome Weight: 190 lbs. (86 kg.)
Capacity
Standing: 5 people
Row Seating: 3 people
Perfect for trade shows or showing off 360 content.
Size & Weight
Floor Area: 296 sq.ft. (27 sq.meters)
Ceiling Center Height: 11.875 ft. (3.6 meters)
Approx. Dome Weight: 895 lbs. (406 kg.)
Capacity
Standing: 45 people
Row Seating: 25 people
Buffet Dinner: 20 people
Round & Stand Up Tables: 20 people
Assembly
Assembly Time: 3 hours with crew of 2
Required Equipment: 8′ A- Frame Ladder, 12′ Material Lift
Size & Weight
Floor Area: 426 sq.ft. (40 sq.meters)
Ceiling Center Height: 14.25 ft. (4.3 meters)
Approx. Dome Weight: 1,125 lbs. (510 kg.)
Capacity
Standing: 60 people
Row Seating: 45 people
Buffet Dinner: 20 people
Round & Stand Up Tables: 20 people
Assembly
Assembly Time: 3 hours with crew of 2
Required Equipment: 8′ A- Frame Ladder, 12′ Material Lift
Size & Weight
Floor Area: 695 sq.ft. (64.5 sq.meters)
Ceiling Center Height: 15 ft. (4.5 meters)
Approx. Dome Weight: 1,454 lbs. (660 kg.)
Capacity
Standing: 100 people
Row Seating: 65 people
Buffet Dinner: 50 people
Round & Stand Up Tables: 50 people
Assembly
Assembly Time: 7 hours with crew of 3
Required Equipment: 8′ A- Frame Ladder, 18′ Material Lift
Size & Weight
Floor Area: 1,018 sq.ft. (94.5 sq.meters)
Ceiling Center Height: 20 ft. (6 meters)
Approx. Dome Weight: 2,332 lbs. (1,058 kg.)
Capacity
Standing: 145 people
Row Seating: 125 people
Buffet Dinner: 100 people
Round & Stand Up Tables: 75 people
Assembly
Assembly Time: 10 hours with crew of 2 or 3
Required Equipment: 6 k Reach Fork with 42′ min boom, 8′ A-Frame, 20′ electric scissor
Size & Weight
Floor Area: 1,520 sq.ft. (141 sq.meters)
Ceiling Center Height: 22 ft. (6.7 meters)
Approx. Dome Weight: 4,303 lbs. (1,952 kg.)
Capacity
Standing: 217 people
Row Seating: 140 people
Buffet Dinner: 125 people
Round & Stand Up Tables: 100 people
Assembly
Assembly Time: 12 hours with crew of 3 or 4
Required Equipment: 8 k Reach Fork with 44′ min boom, 2 x 8′ A-Frame, 20′ Electric Scissor, Jackhammer
Size & Weight
Floor Area: 1,962.5 sq.ft. (182.3 sq.meters)
Ceiling Center Height: 24.5 ft. (7.5 meters)
Approx. Dome Weight: 7,150 lbs. (2,563 kg.)
Capacity
Standing: 300 people
Row Seating: 200 people
Buffet Dinner: 170 people
Round & Stand Up Tables: 150 people
Assembly
Assembly Time: 14 hours with crew of 4
Required Equipment: 10k reach, 54′ boom, 2 x 8′ A-Frame, 25′ Electric Scissor, Jackhammer
Size & Weight
Floor Area: 2,800 sq.ft. (260 sq.meters)
Ceiling Center Height: 30 ft. (9.1 meters)
Approx. Dome Weight: 6,170 lbs. (2,800 kg.)
Capacity
Standing: 400 people
Row Seating: 225 people
Buffet Dinner: 200 people
Round & Stand Up Tables: 200 people
Assembly
Assembly Time: 14 hours with crew of 4
Required Equipment: 10k reach, 56′ boom, 80′ boom, 2 x 8′ A-Frame, 30′ Electric Scissor, Jackhammer
Size & Weight
Floor Area: 3,926 sq.ft. (365 sq.meters)
Ceiling Center Height: 35.3 ft. (10.8 meters)
Approx. Dome Weight: 14,150 lbs. (6,418 kg.)
Capacity
Standing: 560 people
Row Seating: 400 people
Buffet Dinner: 300 people
Round & Stand Up Tables: 250 people
Assembly
Assembly Time: 16 hours with crew of 5
Required Equipment: 60 ton crane, 1 x 35′ rt scissors, 1 x 80′ stick boom, Jackhammer, 6k Variable Reach Fork
Size & Weight
Floor Area: 6,340 sq.ft. (589 sq.meters)
Ceiling Center Height: 45 ft. (13.7 meters)
Approx. Dome Weight: 30,000 lbs. (13,607 kg.)
Capacity
Standing: 912 people
Row Seating: 700 people
Buffet Dinner: 600 people
Round & Stand Up Tables: 500 people
Assembly
Assembly Time: 18 hours with crew of 10
Required Equipment: 100 ton crane, 1 x 45′ rt scissors, 1 x 80′ Stick Boom, 2 x Jackhammer, 6k Variable Reach Fork
